Acoustic Panels
Fine & Bold
Infinity is a high-performance acoustic system for wall and ceiling surfaces that combines acoustic precision with creative freedom. Fine & Bold differ in their deck width.
2780 x 128 mm
deck width 14 mm Fine | 30 mm Bold
grooving 2 mm
packing unit: 6 panels (= 2,14m² / 1 pack)
MOQ: 1 pack
| Variation | Design | Fire safety | Article number | €/m² |
| Fine | ALPINE MEADOW light | normally flammable DIN B2 / EN D-s2,d0 | AKU-INFFIALM2020NE | 239,00 |
| Fine | ALPINE MEADOW light | flame-retardant DIN B1 / EN B-s2,d0 | AKU-INFFIALM2020SE | 261,00 |
| Bold | ALPINE MEADOW | normally flammable DIN B2 / EN D-s2,d0 | AKU-INFBOALM0075NE | 339,00 |
| Bold | ALPINE MEADOW | flame-retardant DIN B1 / EN B-s2,d0 | AKU-INFBOALM0075SE | 361,00 |
Bold | ALPINE MEADOW
Fine | ALPINE MEADOW light
The absorber core consists of an MDF panel. Enhanced with ORGANOID’s handcrafted natural finishes, Infinity opens up new possibilities for using acoustics not only for functional purposes but also as a design element in its own right.
Our ORGANOID natural surfaces ALPINE MEADOW and ALPINE MEADOW light are breathable, which is why they also allow sound to pass through.
Both the acoustic effect and the natural texture of the materials help improve the indoor environment. Our natural surfaces are breathable, suitable for people with allergies, and antistatic.
Technichal details

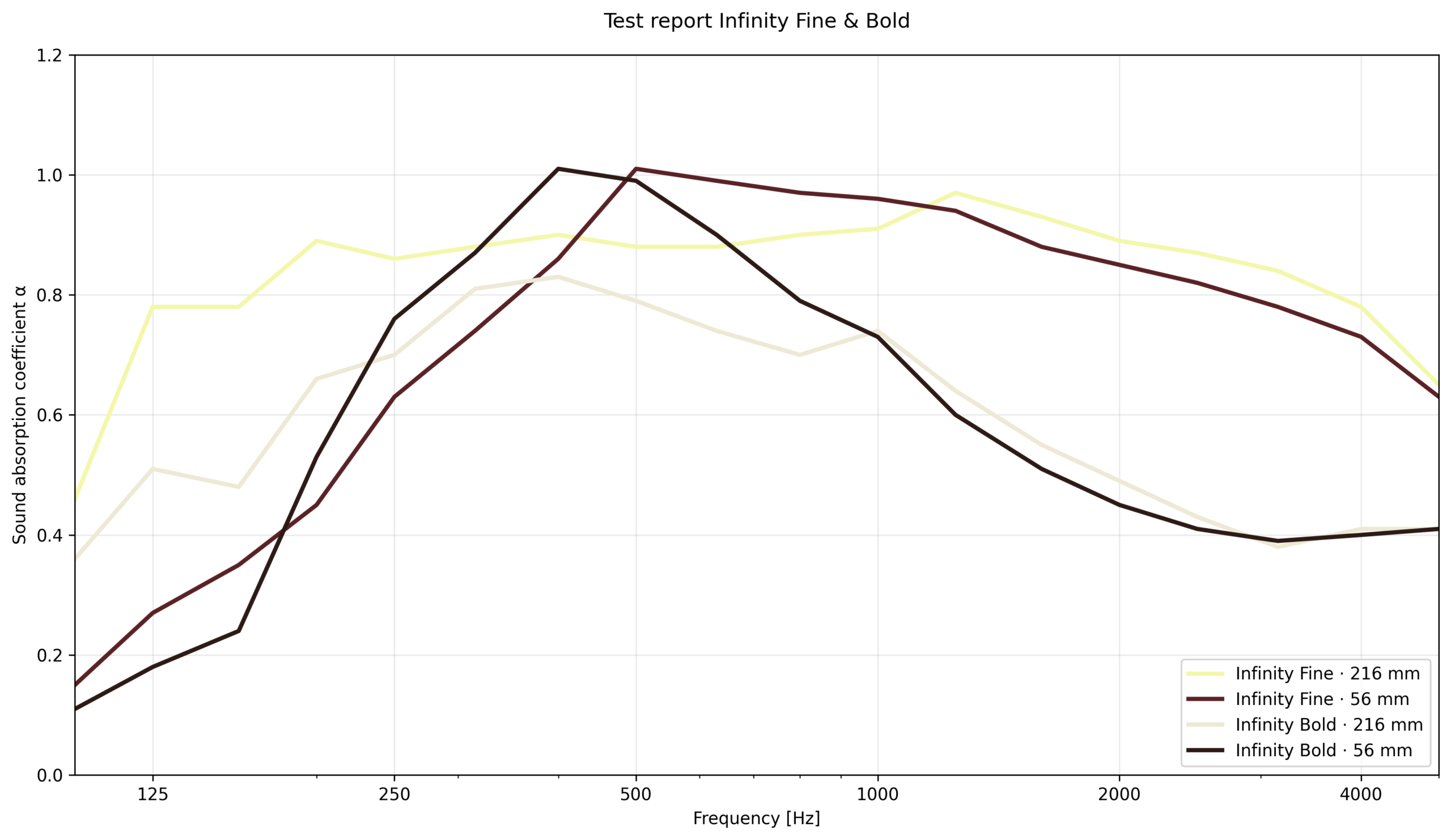

The acoustic panels in all designs have been tested in accordance with EN ISO 354 and, depending on their construction and installation, have a sound absorption coefficient A.
| Test | αw | EURO | NRC | Variation |
| 216 mm distance, 30 mm backfilling | 0.90 | A | 0.89 | Fine |
| 56 mm distance, 30 mm backfilling | 0.85 | B | 0.86 | Fine |
| 216 mm distance, 30 mm backfilling | 0.55 | D | 0.50 | Bold |
| 56 mm distance, 30 mm backfilling | 0.50 | D | 0.73 | Bold |
Simple, seamless assembly using a tongue-and-groove connection with a screw clip.
acoustically highly effective
Sound absorption coefficient measured in accordance with EN ISO 354
natural material
easy installation
flame-retardant
on request
Individual designs
All acoustic products in the Infinity line can be combined individually.
