Acoustic Tiles
Our Acoustic Tiles offer an effective way to improve room acoustics in a targeted manner while also allowing for creative freedom. The individual elements can be flexibly combined with one another, enabling customised wall or surface designs.
580 x 580 x 20 mm
190,00 €/Tile
564,81 €/m²
MOQ: 4 Tiles
Choose from 9 different designs to create your own unique look.
GRID
AKU-TLSALM5858V1
CIRCLES
AKU-TLSALM5858V2
LOOPS
AKU-TLSALM5858V3
HYBRID
AKU-TLSALM5858V4
LINES
AKU-TLSALM5858V5
CELLS
AKU-TLSALM5858V6
BLOOM
AKU-TLSALM5858V7
PEARLS
AKU-TLSALM5858V8
SUN
AKU-TLSALM5858V9
The absorber core of the Acoustic Tiles is our Active Core. It consists of hemp fibers and a biodegradable binding fiber. This combination of materials ensures stability, dimensional stability, and effective sound absorption. Our ORGANOID natural surface, ALPINE MEADOW light, is breathable, which is why it allows sound to pass through.
Both the acoustic effect and the natural texture of the materials help improve the indoor environment. Our natural surfaces are breathable, suitable for people with allergies, and antistatic.
Technichal details

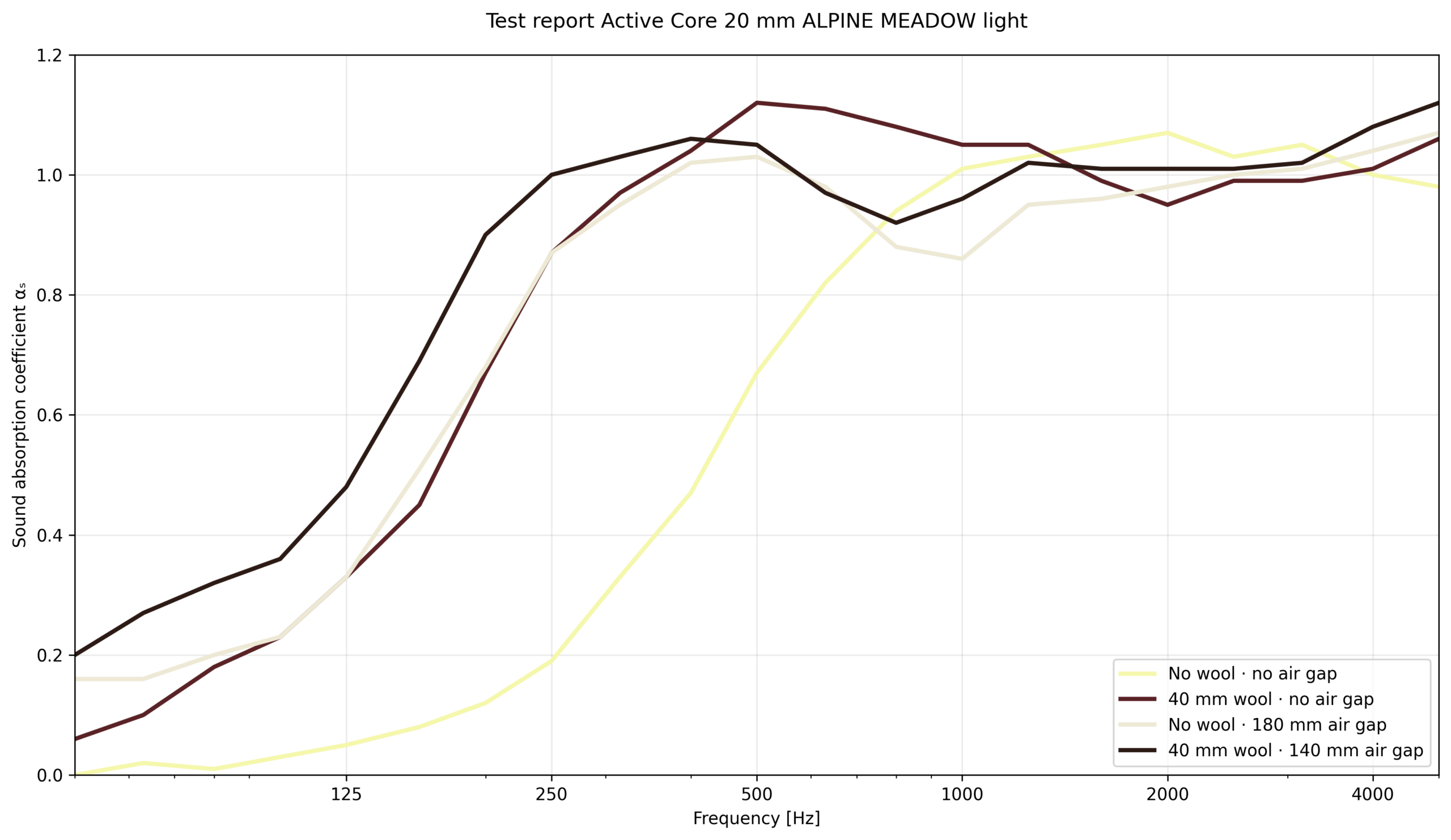

The Acoustic Tiles have been tested in accordance with EN ISO 354 and, depending on their construction and installation, have a sound absorption coefficient A.
| Test | αw | EURO | NRC | Decor |
| direct installation | 0.50 | D | 0.75 | ALPINE MEADOW light |
| 40 mm backfilling | 1.00 | A | 1.00 | ALPINE MEADOW light |
| 180 mm distance | 1.00 | A | 0.95 | ALPINE MEADOW light |
| 140 mm distance, 40 mm backfilling | 1.00 | A | 1.00 | ALPINE MEADOW light |
Trotz seines natürlichen Faseranteils lässt sich der Active Core einfach verarbeiten wie PET. Er kann auf bestehenden Maschinenparks bearbeitet werden. Stanzen, Sägen, Wasserstrahlschneiden, Cuttermesser, CNC-Cutter, alles ist möglich, um dein Akustikprodukt zu verarbeiten.
Test report Active Core 20 mm | ALMWIESE light | direkte installation
Test report Active Core 20 mm | ALMWIESE light | 40 mm backfilling
Messbericht Active Core 20 mm | ALMWIESE light | 180 mm distance
Test report Active Core 20 mm | ALMWIESE light | 140 mm distance, 40 mm backfilling
Installation with Adhesive foil
Installation with Power magnets
Installation with Construction Adhesive
Sketch-Up Files
acoustically highly effective
Sound absorption coefficient measured in accordance with EN ISO 354
natural material
93,8% biodegradable
easy installation
numerous possibilities
Individual designs
All acoustic products in the Infinity line can be combined individually.
Mix and match from the following designs:
