Acoustic Panels
Flexible processing enables customised cuts and opens up a high degree of design freedom. Different formats, complex geometries and diverse surfaces can be implemented with precision.
In addition to the unlaminated PURE Active Core design, our panels are available in the following designs:

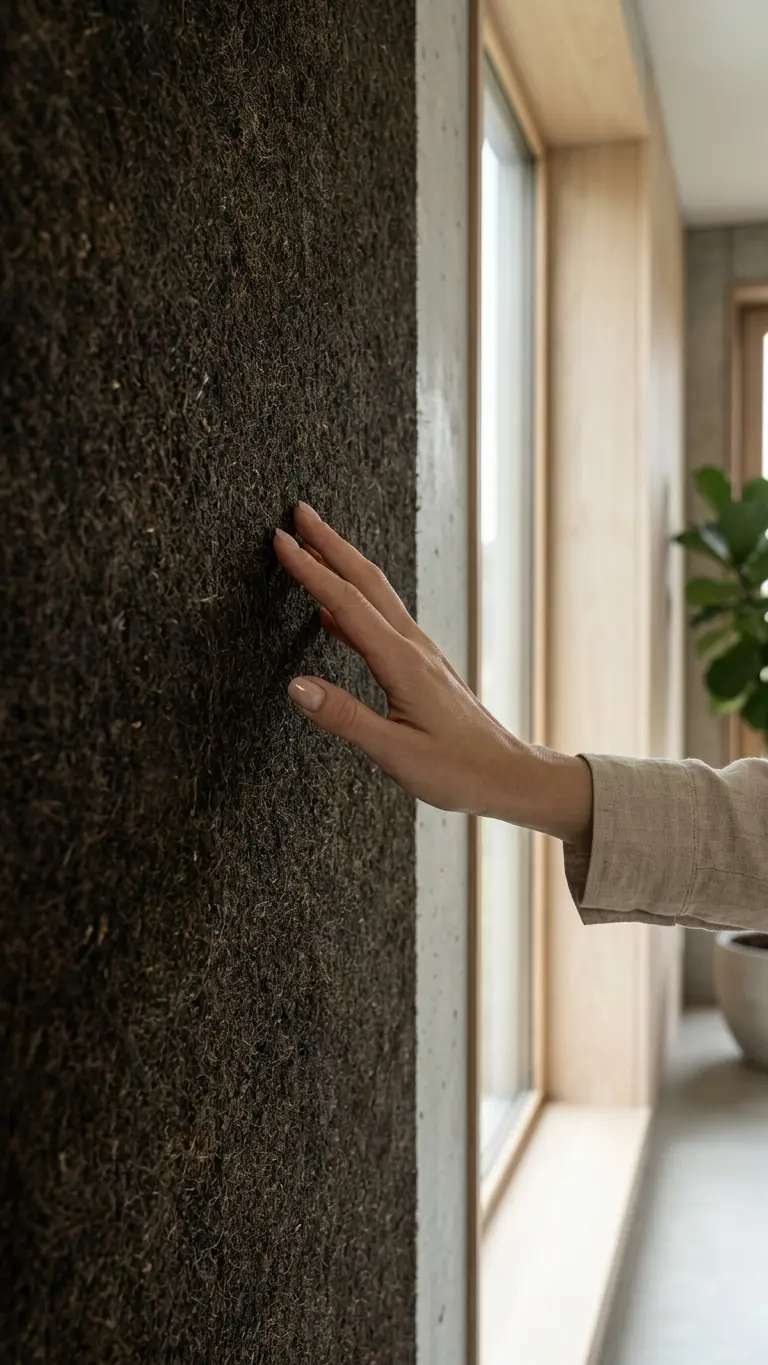

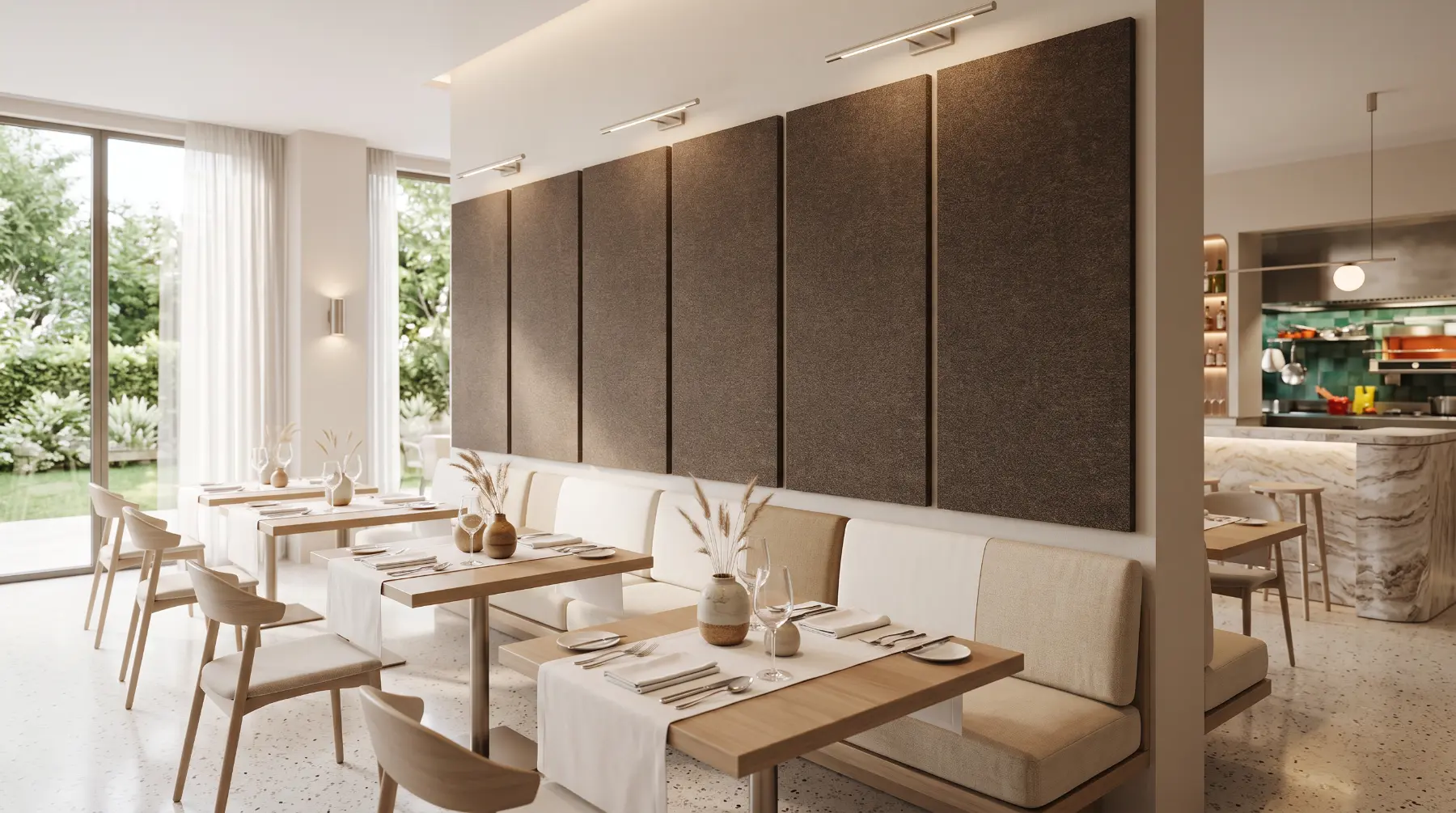

PURE

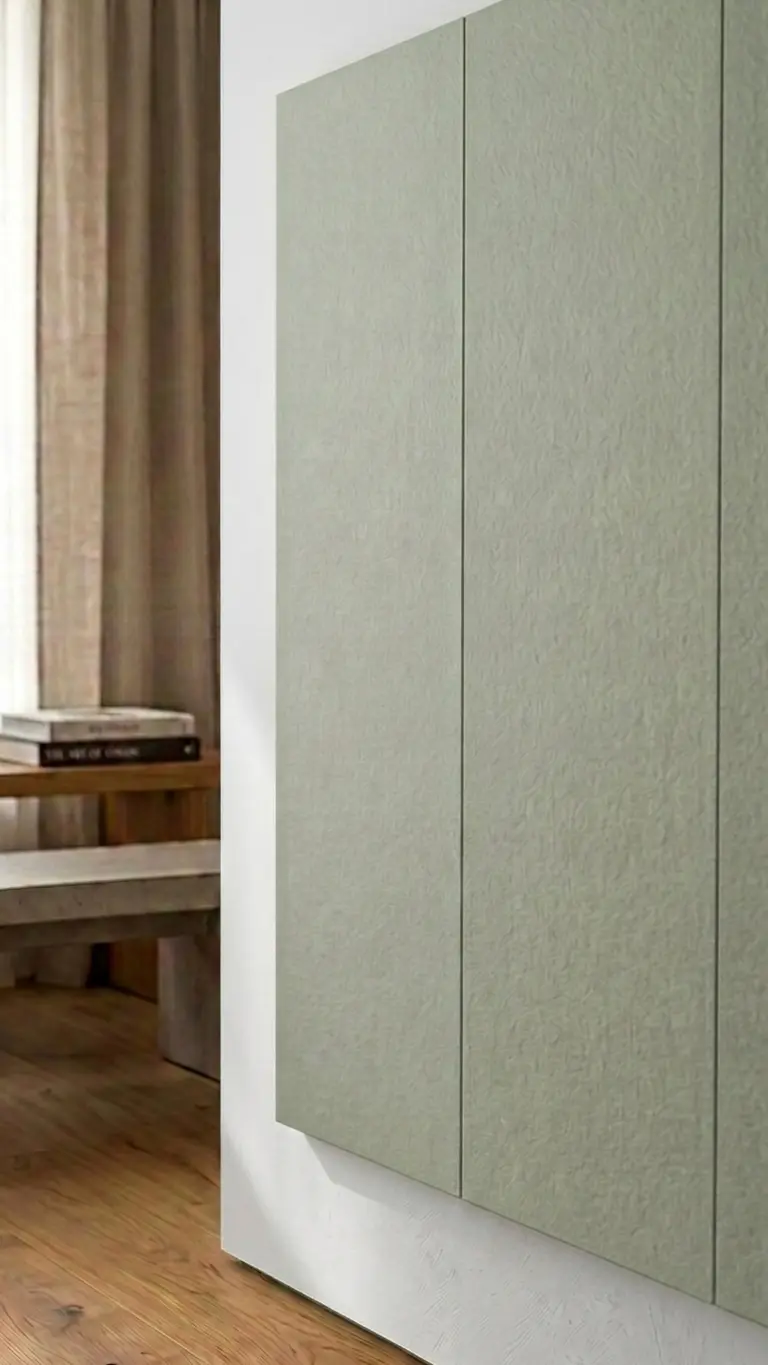

WOOL sage green

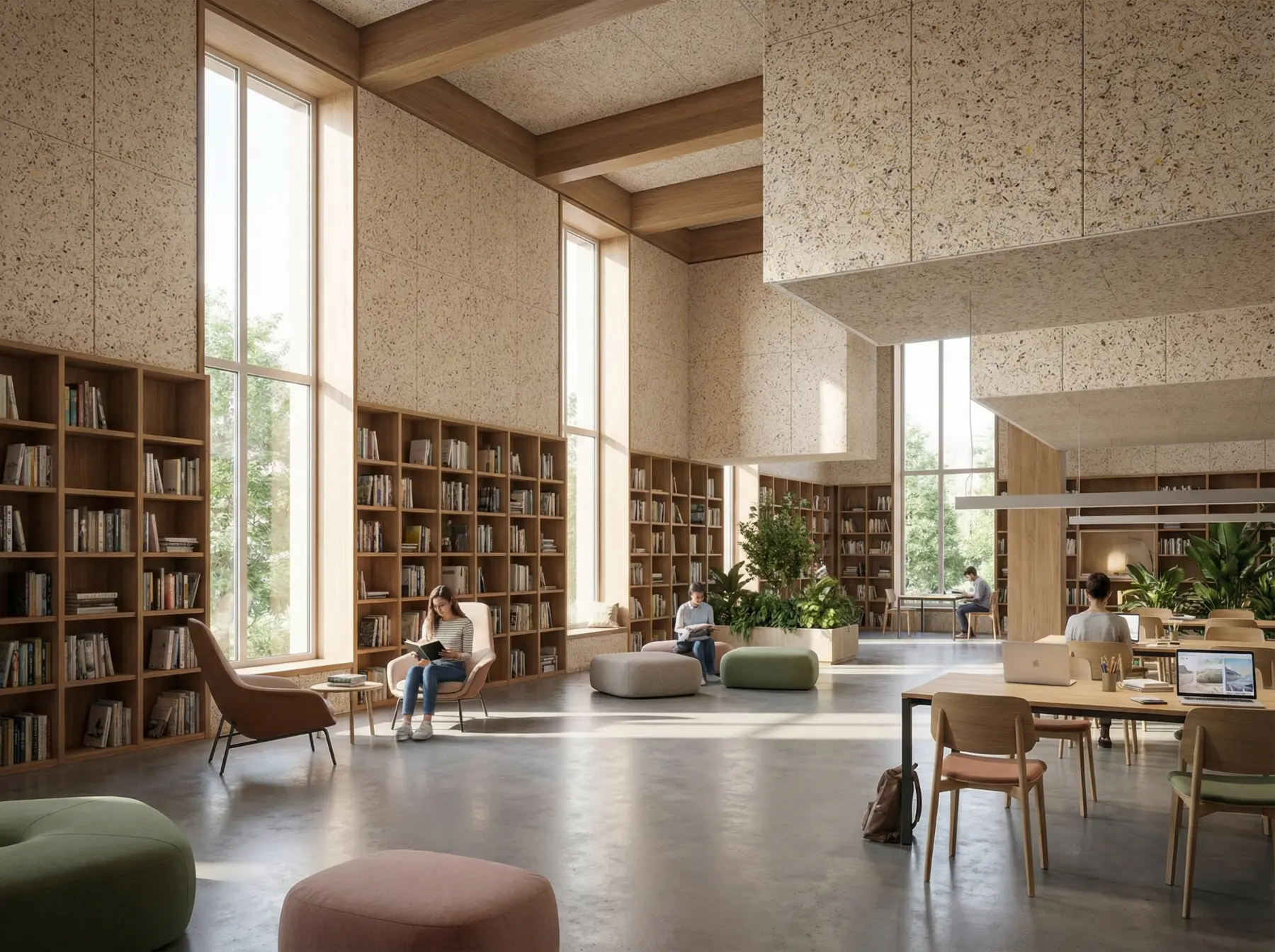

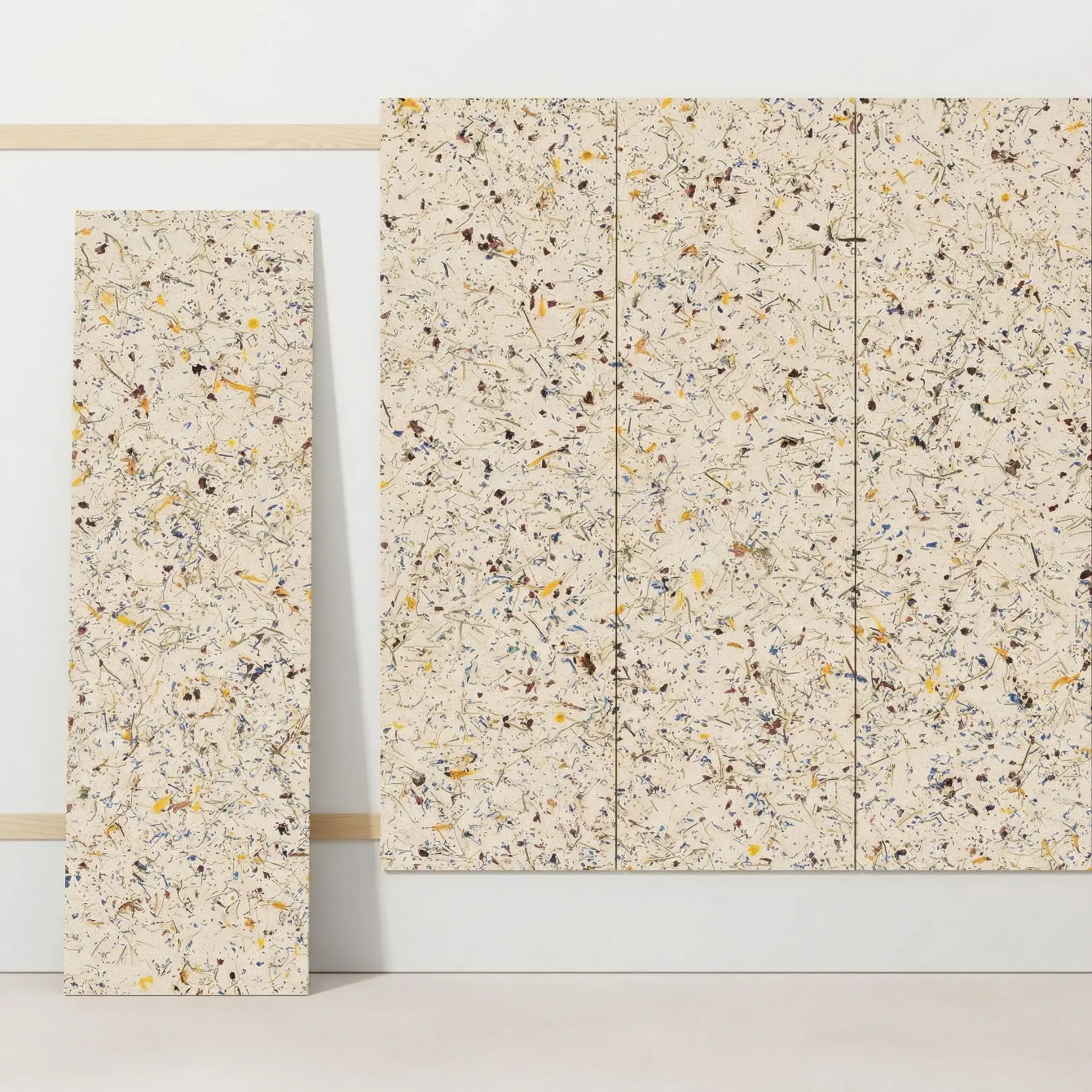

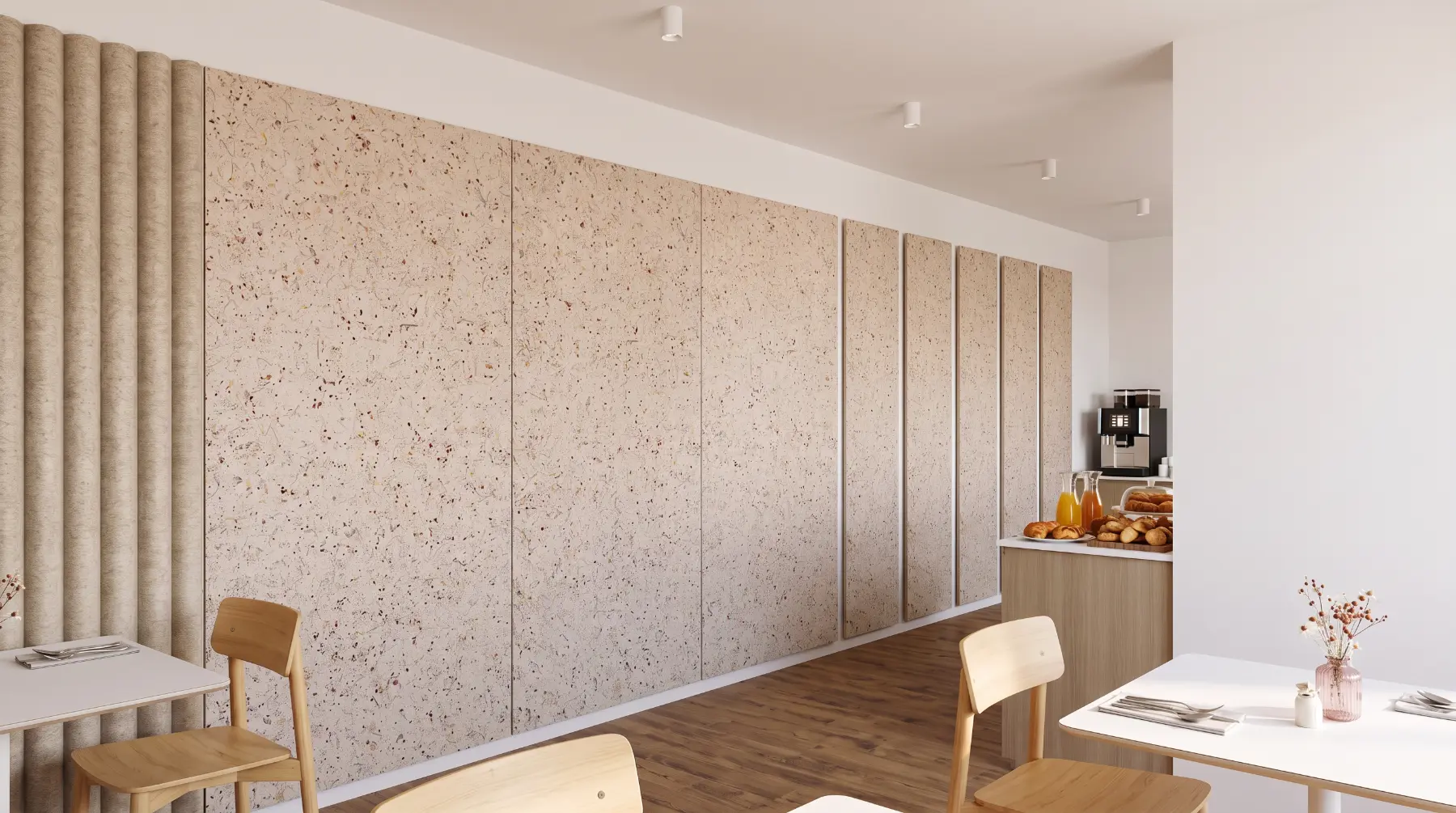

ALPINE MEADOW light

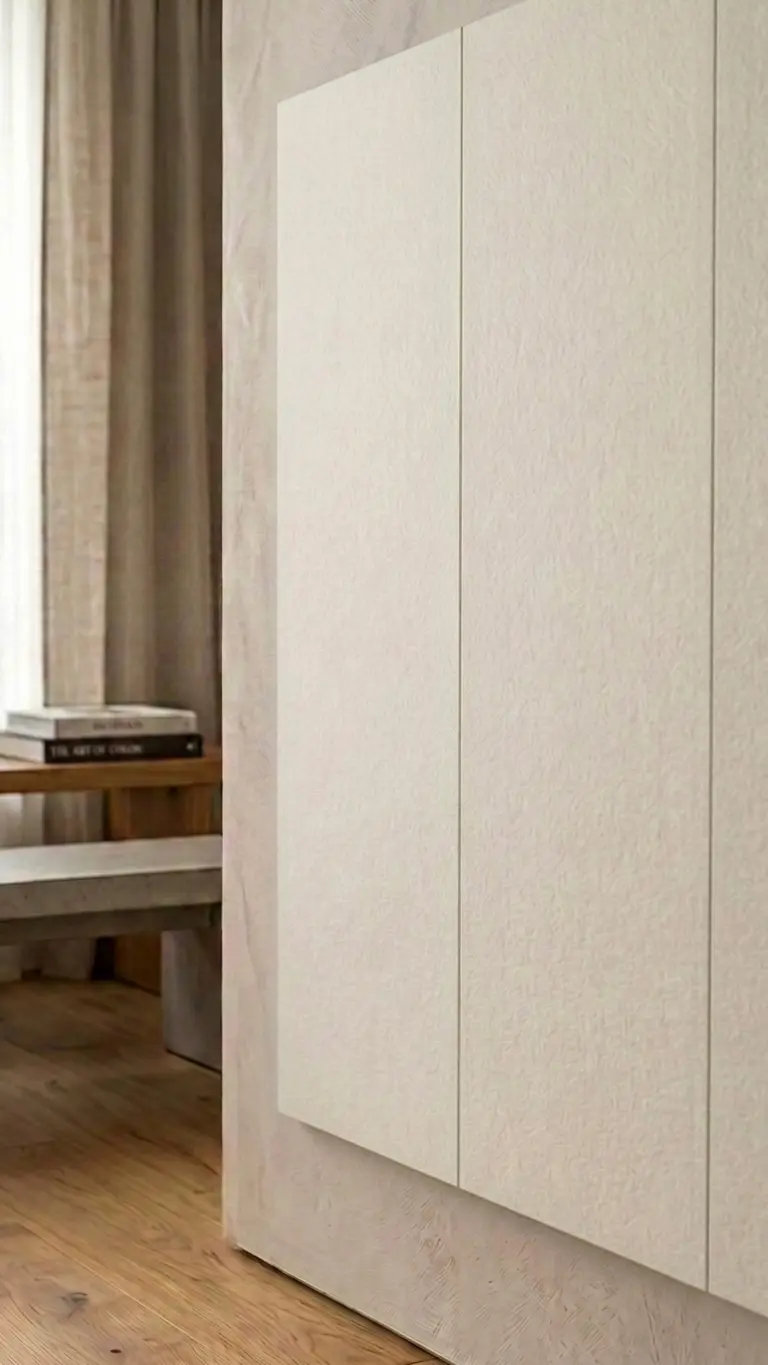

WOOL white
| Format | Design | Article number | €/piece | €/m² |
| 580 x 2320 x 20 mm | ALPINE MEADOW light | AKU-ACP20ALM58232 | 394,00 | 292,80 |
| 580 x 2320 x 20 mm | WOOL white WOOL sage green | AKU-ACP20WEI58232 AKU-ACP20SGR58232 | 249,00 | 185,05 |
| 580 x 2320 x 20 mm | PURE | AKU-ACP20PUR58232 | 159,00 | 118,16 |
| 1160 x 2320 x 20mm | ALPINE MEADOW light | AKU-ACP20ALM116232 | 678,00 | 251,93 |
| 1160 x 2320 x 20mm | WOOL white WOOL sage green | AKU-ACP20WEI116232 AKU-ACP20SGR116232 | 454,00 | 168,70 |
| 1160 x 2320 x 20mm | PURE | AKU-ACP20PUR116232 | 276,00 | 102,56 |
The absorber core of the Acoustic Panels is our Active Core. It consists of hemp fibers and a biodegradable binding fiber. This combination of materials ensures stability, dimensional stability, and effective sound absorption.
Our ORGANOID natural surface, ALMWIESE light, is breathable, which is why it allows sound to pass through. Learn more about the properties of ALMWIESE light here.
The WOOL design is made of real sheep’s wool and offers several advantages. It is breathable, stores humidity, and releases it as needed. It also filters formaldehyde from the air.
Both the acoustic effect and the natural texture of the materials help improve the indoor environment. Our natural surfaces are breathable, suitable for people with allergies, and antistatic.
Technichal details
The acoustic panels in all designs have been tested in accordance with EN ISO 354 and, depending on their construction and installation, have a sound absorption coefficient A.
| Test | αw | EURO | NRC | Decor |
| direct installation | 0.50 | D | 0.75 | ALPINE MEADOW light |
| 40 mm backfilling | 1.00 | A | 1.00 | ALPINE MEADOW light |
| 180 mm distance | 1.00 | A | 0.95 | ALPINE MEADOW light |
| 140 mm distance, 40 mm backfilling | 1.00 | A | 1.00 | ALPINE MEADOW light |
| direct installation | 0.45 | D | 0.60 | PURE |
| 40 mm backfilling | 1.00 | A | 1.00 | PURE |
| 180 mm distance | 1.00 | A | 0.90 | PURE |
| 140 mm distance, 40 mm backfilling | 1.00 | A | 1.05 | PURE |
| direct installation | 0.55 | D | 0.75 | WOOL |
| 40 mm backfilling | 1.00 | A | 1.00 | WOOL |
| 180 mm distance | 1.00 | A | 0.95 | WOOL |
| 140 mm distance, 40 mm backfilling | 1.00 | A | 1.00 | WOOL |
Trotz seines natürlichen Faseranteils lässt sich der Active Core einfach verarbeiten wie PET. Er kann auf bestehenden Maschinenparks bearbeitet werden. Stanzen, Sägen, Wasserstrahlschneiden, Cuttermesser, CNC-Cutter, alles ist möglich, um dein Akustikprodukt zu verarbeiten.
Test reports Active Core 20 mm | ALPINE MEADOW light

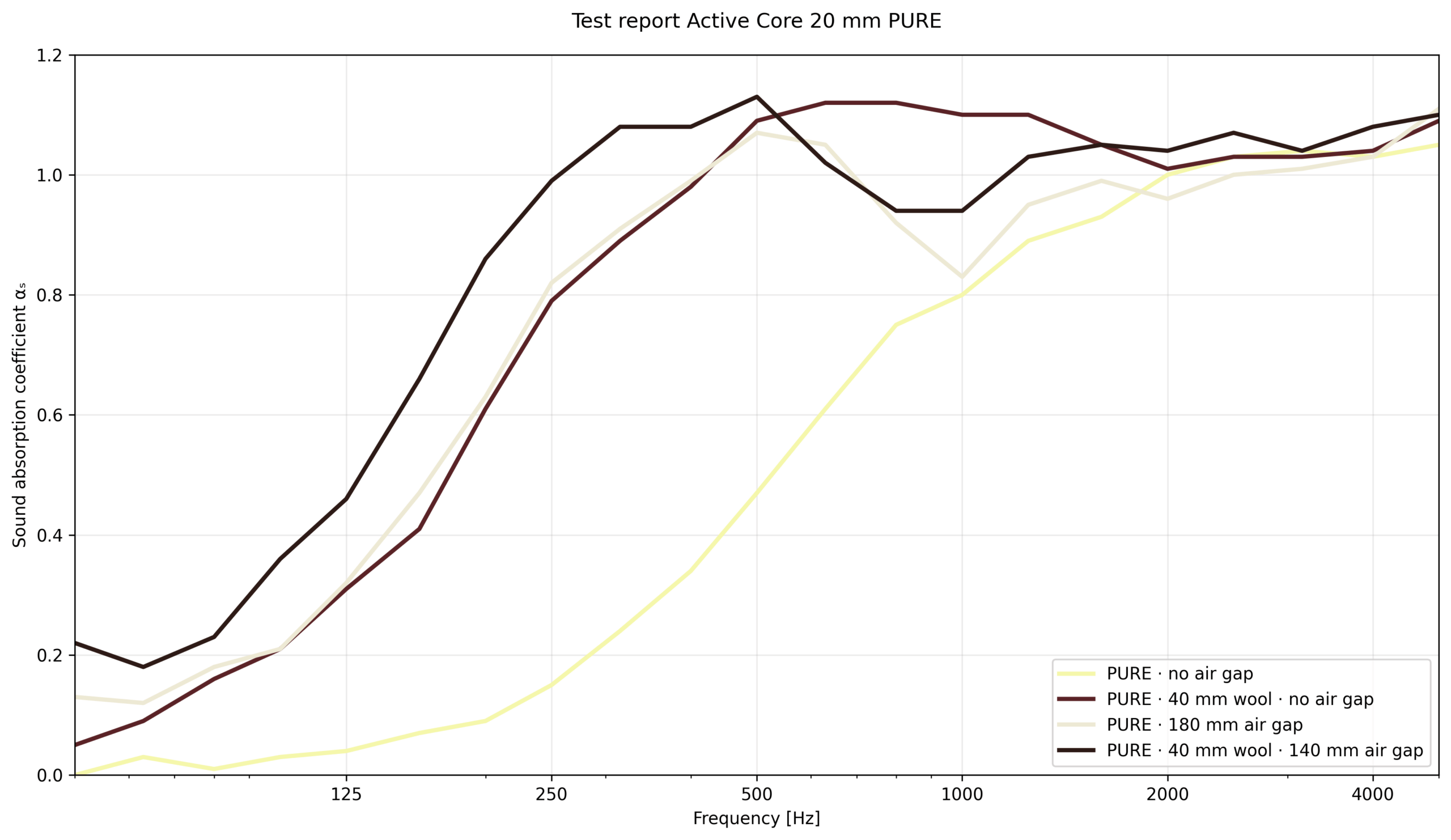

Test reports Active Core 20 mm | PURE

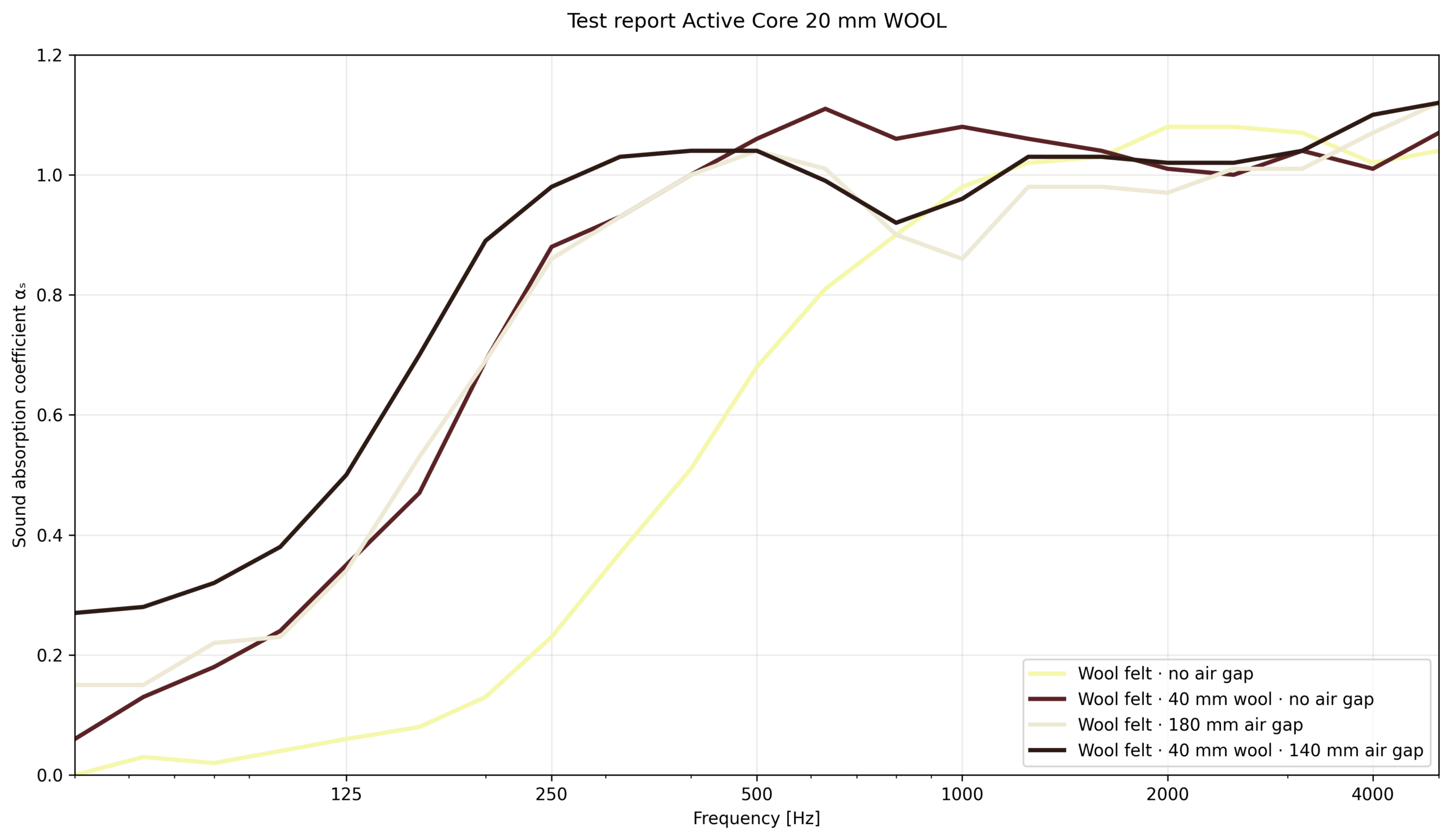

Test reports Active Core 20 mm | WOOL
Installation with adhesive foil
Installation with acoustic rails
Installation with construction adhesive
acoustically highly effective
Sound absorption coefficient measured in accordance with EN ISO 354
natural materials
93,8% biodegradable
easy installation
numerous possibilities
Individual designs
All acoustic products in the Modular line can be combined individually.
